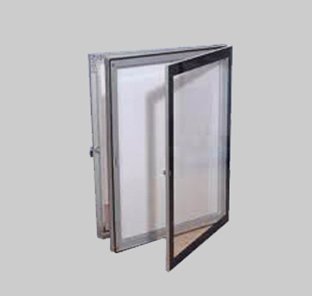

LED LIGHT BOX
APPLICATIONS:
Advertisement panels in malls, airports, hotels
Signboards for shops, hospitals
Bus stops and railway stations
Menu boards in restaurants
FEATURES:
Uses unique edge lit technology for uniform transmission of light
Use of laser engraved light guide panel enhances the lumen output
Available in various sizes upto 15 feet
Slender design with depth from 8mm to 32mm
Attractive aluminium frame (anodized) which is much superior to powder coated CRC sheet
Various designs to choose from - clip type, stick type, single side / double side display, etc.
Special designs for both indoor and outdoor use (IP20, IP54, IP65)
Consumes 70 – 85% less energy than conventional light boxes
Life of over 30,000 hours
LIGHT BOX – WORKING PRINCIPLE CONVENTIONAL METHOD
In the conventional system used for back lit advertisement panels, the light box has numerous tubes at the rear cover of the box and an acrylic or plastic top having picture of the signage.
The disadvantage of this system are:
Non uniform light distribution with dark spots
In case of failure of even single tube, it affects the signage appearance therefore
warranting dismantle of complete panel
High power consumption especially in large panels
The product is heavy and requires strong supporting system
Special designs for both indoor and outdoor use (IP20, IP54, IP65)
LIGHT BOX – OUR TECHNOLOGY
In LGP technology, instead of lighting being at the back, the light source (LED) are on the edge of the distribution plate and light is transmitted across the panel uniformly through the laser cut V-grooves across the plate.
The slim profile of the edge light signs is attributed to the location of light source and the innovation design of the optical light plate. The LED lights are mounted on the edge of the light plate, rather than behind as in conventional signs therefore reducing the thickness of the signs. The light travels through the sign with the help of the laser-dotting pattern, v-cutting pattern or digital printed dot screen.
The size and density of the dots on the plate vary according to their distance to the LED light source. This pattern brings out a very bright and even distribution of light across the entire plate.

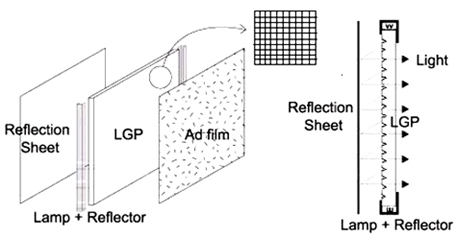

SCHEMATIC DIAGRAM OF LGP PRINCIPLE
APPLICATIONS:
Our light boxes are customized products and will be made as per the requirement of the customer.
The following information needs to be provided at the time of placing the order:
1) Size of the light box (length, width & depth)
2) Lux level
3) Type (clip type or stick type)
4) Hinged or screw type
5) Single side OR double side display
6) Any other special requirements
